DC 9V To 36V MEMS Vibration Sensor Accelerometer Multipoint Measerment

Name: DC 9V To 36V MEMS Vibration Sensor Accelerometer Multipoint Measerment
Brand: RION
Price: 235.00 USD

Cheap DC 9V To 36V MEMS Vibration Sensor Accelerometer Multipoint Measerment for sale

Model Number : AKF390B

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs vibration sensor in each inner box , 50pcs/ctn

Price : $235.00/Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T,PAYPAL

Supply Ability : 3000/month

Delivery Time : 7 days for sample

Usage : VIBRATION SENSOR

Theory : Capacitance Sensor

Output : Analog SENSOR

vibration sensor axis : X, Y , Z

output : 0-5V

power supply : DC 9~36V

anti-impact : 2000G

weight : 73.5

working temperature : -40°C to +85°C

excellent bias stability : Yes

Contact Now

DC 9~36V MEMS Vibration Sensor High Accuracy Accelerometer 3 Axis MEMS Based Acceleroemeter

General Description

The AKF390 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Feature

★ three axis (X,Y,Z)

★ output voltage: 0-5V
★ power supply:9-36V

★ anti-impact:2000G
★ working temperature: -40°C ~ +85°C

★ store temperature: -55°C ~ +100°C
★ size: L34.4×W34.4×H38mm

★ weight: 73.5g
★ excellent bias stability

Application

★ Crash record, fatigue monitoring and prediction

★ Wind power generation
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

★ Medical equipment
★ Bridge

★ Vehicle

★ Road roller

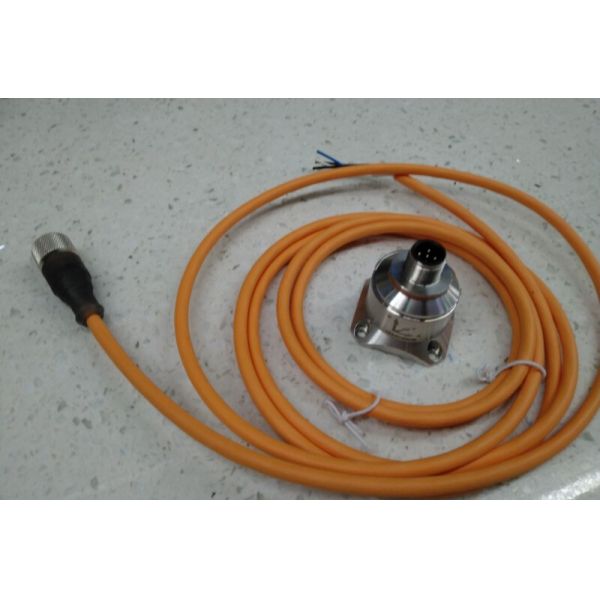

Detailed Images

DC 9V To 36V MEMS Vibration Sensor Accelerometer Multipoint Measerment

Technical Data:

Parameters	AKF390B	Unit
Range	±2 , ±4, ±8	g
Bias calibration	<1	mg
Measuring axis	X,Y,Z	axis
Power on/down repeatability	<2	mg (max value)
Bias temperature coefficient [3]	0.05	mg/℃ typical value
Resolution / Threshold (@ 1Hz)	< 1	mg(max)
Nonlinearity	<3	% FS(max)
Bandwidth [4]	500	Hz
Resonance frequency	5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
Output voltage	0-5V
Magnetic based	optional
Reliability	MIL-HDBK-217,class 2
Anti-impact	100g@11ms,Triaxial and identical (half sine wave)
Restore time	<1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
Input(VDD_VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	73.5g
Size	Magnetic adsorption installation size:34.334.343.2mm, Screw positioning installation size:34.334.338.5mm

Electrical connection:

Color Function	BLACK	WHITE	BLUE	BROWN	GRAY

		GND Power GND	X-axis voltage signal	Y-axis voltage signal	Vcc 9~36V Power supply positive	Z-axis voltage signal

FAQ

Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?
A: T/T 100% , Paypal,

Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
